OSC
8102046623

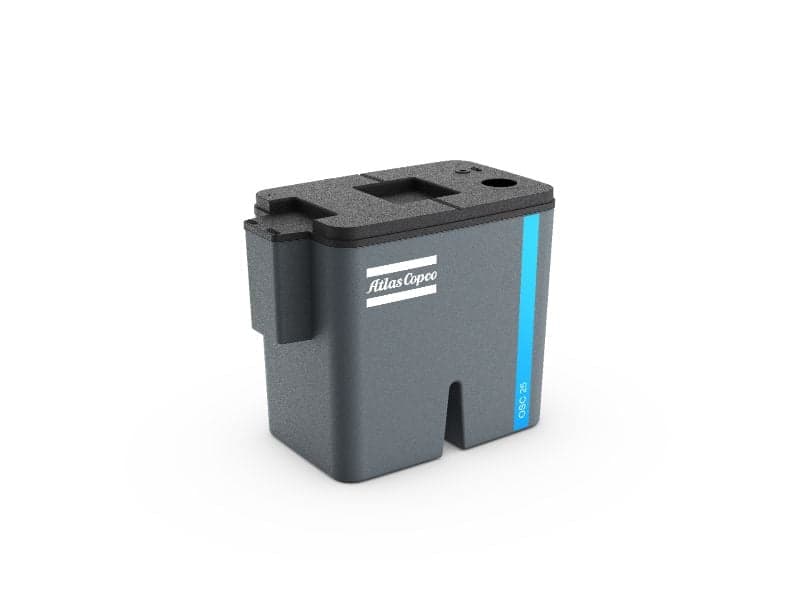

OSC 25 oil/water separator combined with activated carbon
• Model: OSC 25
• Max Capacity* (l/s, m3/hr, cfm): 31, 113, 66
• Max Capacity** (l/s, m3/hr, cfm): 25, 90, 53
Images may differ from the actual product
Images may differ from the actual product
• Model: OSC 25
• Max Capacity* (l/s, m3/hr, cfm): 31, 113, 66
• Max Capacity** (l/s, m3/hr, cfm): 25, 90, 53
Atlas Copco’s OSC25 offers adsorption-based condensate management for oil-injected compressors.
If the oil in the compressor condensate is not removed before it enters the wastewater system, it can cause significant environmental damage.
Therefore, condensate treatment is not only the responsible thing to do; in most countries, it’s the law. Thanks to its multi-stage filtration, Atlas Copco’s OSC removes oil from your compressor’s condensate with unmatched precision to achieve an oil content of 10 ppm at outlet.
The Atlas Copco OSC oil-water separator uses proven, reliable and robust technology to remove oil concentrations to a maximum of 10 ppm.
* Mild Climate without dryer & filters
** Mild climate with dryer & filters
(Capacity is based on the compressor running at 7 barg/100 psig or 12 hours per day, with all condensate from the compressor, the air receiver, the filters and refrigerant dryer piped into the unit. All capacities are based on an outlet oil content of 10 mg/l)
